Projectors Corporate and Education Epson EB-L790SE

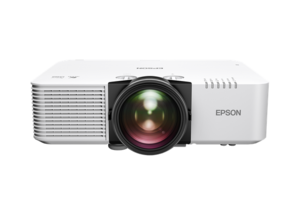

Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement2

Contact Us
Zoom In
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>
Epson EB-L790SE WUXGA 3LCD Laser Projector with 4K Enhancement<sup>2</sup>

The exceptionally bright short throw laser display with a 0.79 – 1.36 throw ratio and 4K Enhancement2.

Experience the extraordinary versatility and performance of our bright and compact L-Series. Expanding on the possibilities of this powerful projector lineup, the high-lumen EB-L790SE features an expansive 0.79 – 1.36 throw ratio and a large display up to 400". With wide vertical and horizontal lens shifts and 1.7x optical zoom, the projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more. Deliver ultra bright images in rooms with high-ambient light with 7,000 lumens of equal color and white brightness1 and 4K Enhancement Technology2 that displays double HD resolution on screen.



Simple to install, the EB-L790SE is easy to operate from start to finish. Built-in NFC functionality3, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source4 and air filter in Extended Mode. Plus, it’s built for modern connectivity with fast wireless functionality for screen casting and PC-less remote management and control via the Epson Projector Management Connected app. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera

      • 7,000 lumens color/white brightness1
      • WUXGA with 4K Enhancement2 for clear, detailed images
      • 0.79 to 1.36 throw ratio and 1.7x optical zoom
      • Display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9
      • Lightweight, compact design allows for easy installation
      • AirPlay 2 supported



Where to Buy
DATA SHEET

Ultra bright, true-to-life images
3-chip 3LCD technology and 7,000 lumens of equal color and white brightness1

WUXGA with 4K Enhancement Technology2
Accepts 4K content and displays double HD resolution on-screen; enjoy a visibly sharper, more detailed picture even at close viewing distances

Large, versatile display options
Easily create a display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility

Simplified installation
Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.7x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern

Low maintenance
Up to 30,000-hour laser light source4 and air filter in Extended Mode

Wireless networking and content sharing
Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security



Projection Lens:

Screen Size: 100” diagonal 1.08m - 1.54mZoom: Zoom: Wide: 60” – 400” [1.02 to 6.95m]
Zoom: Tele: 60” to 400” [1.75 - 11.89m]Throw Ratio Range: 0.79-1.36

Geometric Correction:

Point Correction: 360º Free

Operating Altitude:

Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Air Filter:

Type: Electrostatic FilterMaintenance Cycle*2: 20,000 hours (Normal) / 30,000 hours (Extended)

Specifications Projector:

Size - projected distance: 254cm (100”) diagonal (wide: 9.3’ – tele: 19.8’)Contrast Ratio: Over 50,00,000:1Projection Method: Front / rear / ceiling mountProjection System: 3LCD Reflective, 3-chip technology Poly-silicon TFT active matrixPixel Number: (1920X1200) X3Projected Output:Sound Output:
10 W MonauralAspect Ratio: Native 16:10Driving Method: Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPSNative Resolution: 1920X 1200 with 4K EnhancementLaser Type: Laser Diode 41.9 mW (Output)Light Source Life: Up to 20,000 hours (ECO Mode)*2

Control I/O:

RS-232C: RS-232C: 1 (D-Sub 9pin)

Lens Shift:

Vertical (Up/Down): -20% to +20%Horizontal (Left/Right): -50% to +50%

Dimension (Not including protruding parts):

Open (D x W x H): 440 x 304 x 122 mmWeight: 9.3 kg

Direct Power On / Off:

Direct Power On / Off: Yes
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz
Power Consumption (220-240V area): LD On (Normal / Extended): 450W / 330W Standby (Normal / Eco): 2.4 W / 0.4 W

Projectors Facets:

Laser / Lamp, Projectors Facets: Laser diodeResolution, Projectors Facets: 1920X1200 WUXGA with 4KEThrow Ratio: 1.35-2.20Brightness Range Lumens, Projectors Facets: 7000

Optional Wireless & Built In Lan Specifications:

Supported Speed for each Mode:Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps6; IEEE 802.11g (2.4GHz): 54 Mbps6; IEEE 802.11n (2.4GHz): 72.2 Mbps6; IEEE 802.11a (5GHz): 54 Mbps6; IEEE 802.11n (5GHz): 150.0 Mbps6; IEEE 802.11ac (5GHz): 325 Mbps6;
Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps6; IEEE 802.11n (2.4GHz): 72.2 Mbps6; IEEE 802.11a (5GHz): 54 Mbps6; IEEE 802.11n (5GHz): 150.0 Mbps6; IEEE 802.11ac (5GHz): 325 Mbps6Supported Security Type: Infrastructure: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP; Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS; Access Point (Wi-Fi Direct): WPA2-PSK (AES)Supported Mode: Infrastructure, Access Point (Wi-Fi Direct)

Brightness:

White Light Output (Normal / Eco): 7000lm / 4900lm lm*1Colour Light Output: 7,000 lm*1Contrast Ratio: Over 50,00.000 : 1Colour Mode: Dynamic, Presentation, Cinema, BT.709, Natural, DICOM, SIM, Multi-PJLight Output (Center): 7600*3

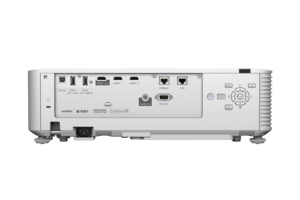

Connectivity Projector:

Standard Connectivity:USB: USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings,Content Playback, ELPEC01 or 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback,ELPEC01 or 5V/0.9A Power Supply USB Type B: 1 (For Firmware Update, Copy OSD Settings)
Network:
Wired LAN: RJ45 x 1 (100Mbps)
Digital Input:HDMI : 2 (HDCP 2.3); HDBaseT: 1 (HDCP 2.3)
Digital Output:HDMI Out: 1 (HDCP2.3, supports only HDMI1 input)
See Full Specs Hide Full Specs
Print All Specs

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.



2 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.



3NFC requires use of a device that includes NFC and may require additional software.



4 No required maintenance for the light source and filter for up to 30,000 hours (Extended Mode) or 20,000 hours (Normal Mode). Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period



5 This light output value is measured at the centre of the screen as a reference value.There is no official standard for light output (Centre) measurements and this measurement is made based on the method set by Epson.
