Maximize productivity with versatile resin ink and bulk ink packs.

As a high-volume print shop, you need powerful, versatile printing solutions that can tackle every job with unparalleled speed and efficiency. Now, with breakthrough resin ink, delivering astounding quality prints at true production speeds has never been more convenient.

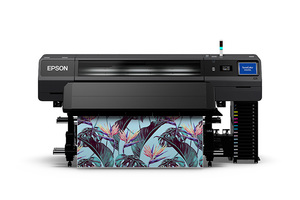

Introducing the SureColor R5030L — an all-new, high-performance signage printing solution, only from Epson.

The first of its kind to feature multi-purpose resin ink, this 163cm (64") roll-to-roll signage printer consistently provides professional-quality wallpapers, fabrics, uncoated papers and traditional signage at remarkable speeds. Designed to keep up with fast-paced print shops, the R5030L offers immediate lamination, user-replaceable PrecisionCore printheads and ultra low-cost inks for ease and savings unlike ever before.



Where to Buy
Support
Amazing Quality and Detail
Get smooth gradations; accurate skin tones; sharp, grain-free photos and crisp, clear text.
  • Amazing image quality — Vibrant 6-color resin inks, plus optimizer, produce astounding-quality prints
  • Reliable color consistency — Delivers consistently high image quality for repeat jobs, brand colors, wall tiling applications and more
  • Immediate lamination — and high scratch resistance increase total productivity
  • Low ink costs — features 3L bulk ink packs for enhanced efficiency and reduced total cost of ownership
  • User-replaceable printheads — For convenient self-serviceability and minimal downtime
  • Supports diverse range of applications — Print fabrics, wallpapers, uncoated papers and more
  • Print speed — State-of-the-art PrecisionCore user-replaceable printhead delivers high-quality images at true production speeds
  • Enterprise software suite — Track jobs, manage variable data and streamline workflow with Epson Edge Print
  • Epson signage portfolio — Tackle the full spectrum of print jobs with Epson S-Series and R-Series printers

Printing:

Printing Technology: PrecisionCore inkjet technology Maximum Print Resolution: 1,200 x 2,400 dpi
With 600 x 600 dpi 8 Half Tone layersPrint Speed: Adhesive Vinyl, Paper/Other: 9pass Production 15.1m2/h
Banner, Non-woven Wallpaper: 6pass Production 21.0m2/h
Textile: 14pass Production 9.5m2/h
Film: 26pass Production 5.2m2/hPrinter Language: ESC/P rasterMax fabric width (mm): 300 - 1,626mm (64inch)Max fabric width (inch): Reel Diameter: Max 200mmMax fabric thickness (mm): Max 1mm

General:

Temperature: Operating: 15ºC to 30ºC (20ºC to 32ºC recommended)Humidity: Operating: 20 – 80% (40 to 60% recommended)System Requirements: Win PC: EPSON Edge Print- OS : Windows 7x64 SP1, 8x64, 8.1 x 64, 10x64 - CPU : Multicore processor (Recommend : 3.0GHz or later) - Memory : 8GB or more free space - Storage : 50GB or more free space - Monitor : 1280×1024 or more. Epson Edge dashboard - OS : Windows 7x32/64 SP1, 8 x 32/64, 8.1x32/64, 10x3 2/64 - CPU : Multicore processor 3.0GHz (Recommend : Intel Core i5 3.4GHz or later) - Memory : 4GB or more free space - Storage : 2GB or more free space - Monitor : 1280×1024 or more Mac: EPSON Edge dashboard - OS : Mac OS X(10.7) or later CPU : Multicore processor 3.0GHz (Recommend : Intel Core i5 3.4GHz or later) Memory : 4GB or more free space Storage : 2GB or more free space Monitor : 1280×1024 or morePower Supply Voltage AC Adapter: Yes
Rated Voltage:
AC 200-240V (50/60Hz) x 2
Power Consumption:
Ready: Approx. 220W
Power Off: Approx. 1.1W
Sleep: Approx. 46W
Operating: Approx. 4.6kW
Rated Current:
16A x 2Product Dimensions: Printing: 2,949mm x 1,045mm x 1,774mm (W x D x H)
Stowed: 2,949mm x 1,045mm x 1,605mm (W x D x H)Product Weight: Approx.449kgControl Panel: 10.9cm (4.3 inch) touch screen

Recommended System Requirements:

Utility Software (Bundled in CD): Windows - Installer Package - Communication Driver - Software Updater - EpsonNet Setup - Epson Edge Dashboard - EpsonNet Print - EpsonNet Config SE - Manuals Launcher - Epson Edge PrintUtility Software (Web delivery): Windows - Installer Package - Communication Driver - Software Updater - EpsonNet Setup - EpsonNet Print - EpsonNet Config SE - Epson Edge Dashboard - LFP Accounting Tool - Manuals Launcher Macintosh - Installer Package - Software Updater - Epson Edge Dashboard - Manuals Launcher
