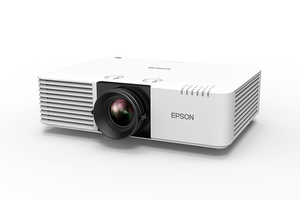

EB-L730U Full HD WUXGA Laser Projector

Captivate your audience with bright, larger-than-life laser displays

Redefine projection with the powerful EB-L730U long-throw laser projector. Offering 7,000 lumens of brightness1, this high-performance laser projector delivers bright, beautiful images for signage and presentations, wayfinding and more. Ideal for nearly any application — from lecture halls to gallery walls — the EB-L730U projects up to 500" in astounding Full HD WUXGA resolution and features built-in tools to seamlessly support multi-projector setups. Designed with convenience in mind, this flexible laser projector includes a virtually maintenance-free 20,000-hour laser light source2, built-in wireless with Miracast®, easy-to-use tools for simplified installation, and a built-in content creation app3 to help you develop and share your creations.

      • Up to 7,000 lumens of equal Colour and White Brightness1
      • Full HD WUXGA support; native WUXGA 1920 x 1200 resolution
      • Virtually maintenance-free 20,000-hour laser light source2
      • Display from 50" to 500" diagonal (16:10) or ultra wide (16:6)
      • Built-in tools for simplified installation



3-chip 3LCD image quality
With up to 7,000 lumens of equal Color and White Brightness1 for vibrant, rich color

Full HD WUXGA support
Native WUXGA 1920 x 1200 resolution for true-to-life images; accepts 4K signal

Breakthrough laser technology
Features a virtually maintenance-free 20,000-hour laser light source2

Flexible projection
Lightweight, easy-to-install design; can display images from 50" to 500" diagonal in 16:10 or ultra wide 16:6 to cover a large wall with bold, beautiful images

Simplified installation
Horizontal and vertical lens shift; geometric correction tools such as point, arc correction, built-in edge blending, Quick Corner® and 360-degree flexibility make installation easy

Integrated wireless networking with enterprise-level security
Additionally, you can connect with Miracast, which supports software-free, peer-to-peer wireless connectivity; screen sharing for remote collaboration.

Custom brightness and constant brightness modes
Maximize light source life and provide a consistent brightness level.

Easily programmable with the built-in media-player and content creation app3
Includes templates, effects, color filters and customizable options; playlist and playback function allows for seamless content management directly or via the network.

Remarkable sharpness and detail
Up to 50,00,000:1 dynamic contrast ratio.

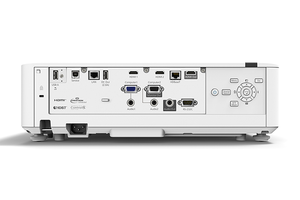

Variety of connectivity options
HDBaseT™, HDMI®, HDMI Out, RJ-45, RS-232 and control management tools



What's in the box:

  • EB-L730U Projector
  • Power Cable
  • Computer Cable (HDMI)
  • Projector Remote Control with Batteries
  • Quick Setup Sheet
  • Cable Cover

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

Connectivity:


Interface: 2 x VGA, with Audio, 2 x HDMI, 1 x HDMI Out, RS-232, USB Type A & B, Ethernet Port, HD-Base-T port , Audio out & Wireless LAN

Projection Lens:


Zoom Ratio: 1-1.6 (Manual)Throw Ratio Range: 1,35 - 2,20:1

Direct Power On/Off:


Direct Power On/Off: Yes

Specifications Projector:


Aspect Ratio: 16:10

Main Parts Specification:


Lightsource: Type: Laser Diode

Lens Shift:


Mode: ManualVertical (Up/Down): -50% to +50%Horizontal (Left/Right): -20% to +20%

Direct Power On / Off:


Direct Power On / Off: Yes

Brightness:


White Light Output (Normal / Eco): 7.000 Lumen - 4.900 Lumen (economy) In accordance with ISO 21118:2020Colour Light Output: 7.000 Lumen- 4.900 Lumen (economy) In accordance with IDMS15.4Contrast Ratio: Over 50,00,000 : 1Light Output (Center): 7400*

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment.
3 Internet connection required for download. Data usage fee may apply.

4 Split Screen feature requires remote control. Consult your user manual for input combinations.

* This light output value is measured at the centre of the screen as a reference value. There is no official standard for light output (Centre) measurements and this measurement is made based on the method set by Epson.
