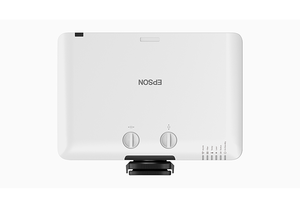

EB-L630SU Full HD WUXGA Short-throw Laser Projector

Display captivating signage from a short distance with this bright short-throw projector.

Redefine projection with the powerful EB-L630SU short-throw laser projector. Offering 6,000 lumens of brightness1, this high-performance laser projector easily delivers bright, beautiful Full HD WUXGA images in space-constrained environments. Ideal for nearly any application — from lecture halls to gallery walls — the EB-L630SU projects eye-catching signage and graphics up to 200" and features built-in tools to seamlessly support multi-projector setups. Designed with convenience in mind, this flexible laser display includes a virtually maintenance-free 20,000-hour laser light source2, easy-to-use tools for simplified installation, and a built-in content creation app3 to help you develop and share your creations.

      • Up to 6,000 lumens of equal Color and White Brightness1
      • Full HD WUXGA support; accepts 4K signal
      • Virtually maintenance-free 20,000-hour laser light source2
      • Project up to 200" from single projector or join multiple projectors
      • Built-in tools for simplified installation


3-chip 3LCD image quality
With up to 6,000 lumens of equal Colour and White Brightness1 for vibrant, rich color

Full HD WUXGA support
Native WUXGA 1920 x 1200 resolution for true-to-life images; accepts 4K signal

Breakthrough laser technology
Features a virtually maintenance-free 20,000-hour laser light source2

Project up to 200" from a single projector
Or seamlessly join accurately colour-matched images from multiple projectors; use split screen4 for side-by-side projection from multiple inputs at the same time; Epson Projector Professional Tool Software compatible

Simplified installation
Horizontal and vertical lens shift; geometric correction tools such as point, arc correction, built-in edge blending, Quick Corner® and 360-degree flexibility make installation easy

Easily programmable with the built-in media-player and content creation app3
Which includes templates, effects, colour filters and customizable options; playlist and playback function allows for seamless content management directly or via the network.

Custom brightness and constant brightness modes
Maximize light source life and provide a consistent brightness level

Remarkable sharpness and detail
Get up to 50,00,000:1 dynamic contrast ratio

Integrated wireless networking with enterprise-level security
Additionally you can connect with Miracast®, which supports software-free, peer-to-peer wireless connectivity

Variety of connectivity options
HDBaseT™, HDMI®, RJ-45, RS-232 and control management tools


What's in the box:

  • EB-L630SU Projector
  • Power Cable
  • Computer Cable (HDMI)
  • Projector Remote Control with Batteries
  • Quick Setup Sheet
  • Cable Cover
  • Quick Setup Poster

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system


Interface: USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN b/g/g 25GHz, Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback

Projection Lens:

Zoom Ratio: 1-1.6 (Manual)

Contrast Ratio:

Contrast Ratio: Over 50,00,000:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Connection Mode: Infrastructure, Access Point

Direct Power On/Off:

Direct Power On/Off: Yes

Main Parts Specification:

LCD: Native Resolution: WUXGA (1920 x 1200)Lightsource: Laser Light Life: 20,000 hours

Direct Power On / Off:

Direct Power On / Off: Yes

Projectors Facets:

Resolution, Projectors Facets:  WUXGA 1920x 1200Throw Ratio: 0.80-1.07Brightness Range Lumens, Projectors Facets: 6000Short Throw / Ultra Short Throw, Projectors Facets: Short ThrowLaser / Lamp, Projectors Facets: Laser diode


Light Output (Center): 6300*


1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
3 Internet connection required for download. Data usage fee may apply.
4 Split Screen feature requires remote control. Consult your user manual for input combinations.

(*) This light output value is measured at the centre of the screen as a reference value. There is no official standard for light output (Centre) measurements and this measurement is made based on the method set by Epson.
