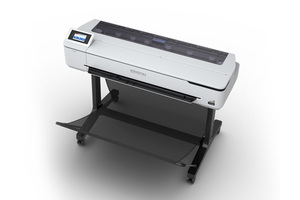

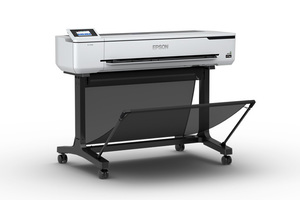

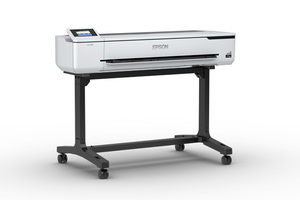

Epson SureColor SC-T5130 Wireless Technical Printer

High-speed, easy-to-use, compact 36" inkjet printer.

    • Engineered to enhance the way you work, the 36" SureColor T5170 wide-format wireless printer offers fast, precise and reliable printing with a compact, clean floor-standing design. Ideal for printing blueprints, line drawings, graphics and posters up to 36", it produces accurate, A1/D-size prints in 31 seconds1. Whether you’re printing from a roll or the Auto Sheet Feeder, the 4.3" color touchscreen makes tasks simple and intuitive. Next-generation high-capacity UltraChrome® XD2 pigment inks deliver durable, vibrant prints. And, with integrated wireless and Wi-Fi Direct®connectivity2, you can easily print from tablets and smartphones3, from virtually anywhere in the office.



  • Durable, Vibrant Prints — next-generation UltraChrome XD2 archival pigment ink technology for brilliant color and crisp lines
  • Versatile Media Handling — accommodates rolls up to 36" wide and sheets up to 11" x 17" through the Auto Sheet Feeder
  • Precise, Sharp Detail — print blueprints, line drawings, posters and more, up to 2400 dpi
  • Easy to Set Up — get up and running out of the box in as quickly as 30 minutes

Designed for use exclusively with Epson cartridges*.

What's in the box:

  • SureColor T5170 Printer
  • Printer Stand
  • Full Set of Initial Ink Cartridges (CMYK – 50 mL)
  • User Guide
  • AC Power Cable

Note: Media is not included with the printer

Printing:


Printing Technology: PrecisionCore TFP PrintheadNozzle Configuration: 3200 nozzles (800 nozzles x 4 channels x 1head)Maximum Print Resolution: 2400 x 1200 dpiMinimum Ink Droplet Size: 4.0plPrint Speed: CAD A1 : 31 sec Minimum Line Width: Roll/Sheet Top, bottom, right, left : Min. 3mm (It differs depend on applications/media)

Ink:


Ink Type: Pigment ink(Epson UltraChrome XD2)Colours: Cyan, Magenta,Yellow, BlackInk Capacity: Black : 50ml , 80mlCyan, Magenta, Yellow : 26ml, 50mlInk Cartridge Configuration: Ink Cartridge

Roll Media Handling:


Maximum Roll Diameter: Max. 2 inch core (Depending on the thickness of the paper, it is larger than the available outer diameter size.If roll paper is used, please confirm that it is within the outside diameter range.)Maximum Roll Weight: Max. 110 mm/5kgMedia Width: Roll: 329 mm to 914 mmCutsheet(ASF): A4 to A3Cutsheet(1 sheet): 210 mm to 910 mmMedia Thickness: Roll : 0.05 mm to 0.21 mmASF/Cutsheet : 0.12 mm to 0.27 mmRoll Paper Remaining: The remaining amount is managed on control panel.

Printer Details:


Display: 4.3 inch touch screenPrinter Language: ESC/P Raster, HP-GL/2 & HP RTL, Optional Adobe® Postscript® 3™

Power:


Rated Voltage: AC 100-240V Rated Frequency: 50/60HzPower Consumption: Operating: Approx. 28W
Ready: Approx. 8W
Sleep: Approx. 1.6W
Approx. 0.2WRated Current: 1.4ARecommended Operating Temperature & Humidity: Temperature: Operating: 10°C to 35°C, Storage: -20°C to 40°C
Humidity: Operating: 20 to 80% (no condensation), Storage: 5 to 85% (no condensation)

Paper Handling:


Media Handling: Roll Paper: One Roll, Top-loading
Cut Sheet: Top-loading single sheet and front-loading single sheet for thick boardSupported Media Sizes: Roll Paper Width: 10" (254mm) to 24" (610mm)
Cut Sheet Width: A4 (210mm) to 24" (610mm)
Cut Sheet Length: 279.4mm to 1580mmPaper Path: Friction Feed

Inks and Consumables:


Inks and Consumables: Auto Cutter Spare Blade, Maintenance Box

Connectivity:


Interface: Super-Speed USB*, 100BASE-TX /1000BASE-T/IEEE802.11b/g/n (*Compatible with the USB 3.0 Specification.)Software to be Downloaded: WindiwsInstall NaviFirmware Updater, HDI Driver, CopyFactory, EpsonNet SetupManagerMacInstall Navi - Printer driver - EpsonNet Config - Eposn Software Updater - Uninstaller - EPSON manualsFirmware UpdaterLinuxPrinter driverPrinter Languages : ESC/P rasterHP-GL/2,HP RTL ** (** It might not work correctly with depending on customer’s application and data. Please contact with us beforehand ifyou plan to use the HP-GL/2 connection.”*HP-GL/2 and HP RTL are trademarks of Hewlett-Packard Company.)

Supported OS and Applications:


Supported OS: Windows 10/8.1/8/7/Vista/XPCPU : Core 2 Duo 3.05GHzMemory : Memory more than 1GBHDD : Free space more than 32GB
Macintosh Mac OS X(10.6.8 or later)CPU : Core 2 Duo 3.05GHzMemory : Memory more than 4GBHDD : Free space more than 32GBBundled Applications: Bundled in CD: Windiws Install Navi - Printer driver - EpsonNet Setup - EpsonNet Print - EpsonNet Config - Eposn Software Updater - LFP Print Plug-in for Office - EPSON manualsMacSetup Navi

Notes:

* This product uses only genuine Epson-brand cartridges. Other brands of ink cartridges and ink supplies are not compatible and, even if described as compatible, may not function properly.

1. Print speeds are based on the print engine speed only. Total throughput time for any print depends on workstation configuration, file size, print resolution, ink coverage, networking, etc. Actual print speeds will vary.

2. Wi-Fi CERTIFIED™; level of performance subject to the range of the router being used. Wi-Fi Direct may require printer software.

3. Most features require an Internet connection to the printer, as well as an Internet- and/or email-enabled device.

4. Product size excluding stand.

5. For convenient and reasonable recycling options, visit www.epson.com/recycle


Specification Notes:

* This printer is designed for use with Epson genuine cartridges and ink only, not third-party cartridges or ink.

1. Print speeds are based on the print engine speed only. Total throughput time for any print depends on workstation configuration, file size, print resolution, ink coverage, networking, etc. Actual print speeds will vary.

2. Product size excluding stand.

3. Most features require an Internet connection to the printer, as well as an Internet- and/or email-enabled device. For a list of Epson Connect™ enabled printers and compatible devices and apps, visit www.epson.com/connect

4. Wi-Fi CERTIFIED™; level of performance subject to the range of the router being used. Wi-Fi Direct may require printer software.

5. Cartridge yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature. For print quality, a variable amount of ink remains in the cartridge after the “replace cartridge” indicator comes on. The printer ships with full cartridges and part of the ink from the first cartridges is used for priming the printer.

6. High-volume cutting of canvas and heavy media stocks may require frequent cutter replacement.

7. Allowed by printer driver for Mac and PC. Application, version of application and operating system version may limit maximum length.
