Home For Work Printers Large Format Epson SureColor SC-T3130N

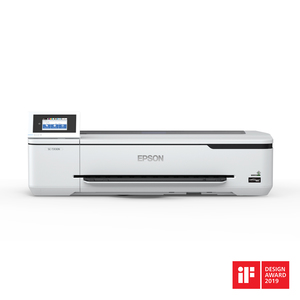

Epson SureColor SC-T3130N Wireless Technical Printer

High-speed, easy-to-use, compact 24" desktop inkjet printer.

    • Engineered to enhance the way you work, the 24" SureColor T3170 wide-format wireless printer offers fast, precise and reliable printing with a compact, clean desktop design. Ideal for printing blueprints, line drawings and posters up to 24", it produces accurate, A1/D-size prints in 34 seconds1. Whether you’re printing from a roll or the Auto Sheet Feeder, the 4.3" color touchscreen makes tasks simple and intuitive. Next-generation high-capacity UltraChrome®XD2 pigment inks deliver durable, vibrant prints. And, with integrated wireless and Wi-Fi Direct® connectivity2, you can easily print from tablets and smartphones3, from virtually anywhere in the office.

  • Durable, Vibrant Prints — next-generation UltraChrome XD2 archival pigment ink technology for brilliant color and crisp lines
  • Versatile Media Handling — accommodates rolls up to 24" wide and sheets up to 11" x 17" through the Auto Sheet Feeder
  • Precise, Sharp Detail — print blueprints, line drawings, posters and more, up to 2400 dpi
  • Easy to Set Up — get up and running out of the box in as quickly as 30 minutes

Designed for use exclusively with Epson cartridges*.

What's in the box:

  • SureColor T3170 Printer
  • Full Set of Initial Ink Cartridges (CMY – 26 mL/Black – 50 mL)
  • Start Here Poster
  • User Guide
  • AC Power Cable

Note: Media is not included with the printer

Printing:


Printing Technology: PrecisionCore TFP PrintheadNozzle Configuration: 3200 nozzles (800 nozzles x 4 channels x 1head)Maximum Print Resolution: 2400 x 1200 dpiMinimum Ink Droplet Size: 4.0plPrint Speed: 34 Sec/A1 ; 106 A1/D per hour Minimum Line Width: Roll/Sheet Top, bottom, right, left : Min. 3mm (It differs depend on applications/media)

Ink:


Ink Type: Pigment ink(Epson UltraChrome XD2)Colours: Cyan, Magenta,Yellow, BlackInk Capacity: Black : 50ml , 80mlCyan, Magenta, Yellow : 26ml, 50mlInk Cartridge Configuration: Ink Cartridge

Sheet Media Handling:


Maximum Paper Width: Roll 320mm-610 mm Cut sheet (ASF), A4-A3 Cut sheet ( 50 sheets )Left / Right Margins: 3 mm (left), 3 mm (right)Top/Bottom Margins: 3 mm (top), 3 mm (bottom)

Roll Media Handling:


Maximum Roll Diameter: SC-T3100 series (24") 2 inch coreMedia Width: 210mm-610mm RollMedia Thickness: Roll : 0.05 mm to 0.21 mmASF/Cutsheet : 0.12 mm to 0.27 mmRoll Paper Remaining: The remaining amount is managed on control panel.Roll Weight: 60 to 280 GSM ( Roll/manual feed ) . 60-230GSM ( input tray ) Auto-Cutter: Yes

Printer Details:


Display: 4.3 inch touch screenPrinter Language: ESC/P Raster, HP-GL/2 & HP RTL, Optional Adobe® Postscript® 3™Other Features: Dimension- Stowed : 970x696x913 mm ( w/stand ) , 970x505x230 mm (w/o stand )
Dimension- Printing : 970x982x913 mm( w/stand ) , 970x982x230 mm (w/o stand )Weight: 27 Kg (Without Stand)

Power:


Rated Voltage: AC 100-240V Rated Frequency: 50/60HzPower Consumption: Sleep: Approx. 1.6W
Operating: Approx. 28W
Approx. 0.2WRated Current: 1.4ARecommended Operating Temperature & Humidity: Temperature: Operating: 10°C to 35°C, Storage: -20°C to 40°C
Humidity: Operating: 20 to 80% (no condensation), Storage: 5 to 85% (no condensation)

Paper Handling:


Media Handling: Roll Paper: One Roll, Top-loading
Cut Sheet: Top-loading single sheet and front-loading single sheet for thick boardSupported Media Sizes: Roll Paper Width: 10" (254mm) to 24" (610mm)
Cut Sheet Width: A4 (210mm) to 24" (610mm)
Cut Sheet Length: 279.4mm to 1580mmPaper Weight: 60 to 280 GSM ( Roll/manual feed ) . 60-230GSM ( input tray ) , Paper Path: Friction FeedPaper Size & Thickness: Roll:329 mm - 610 mmCutsheet(ASF):A4 - A3Cutsheet(1 sheet): 210 mm - 610 mm* for ECC: Roll, Maximum width of loadable Roll media width is 620mm.But maximum width of Printing Area is 610mmRoll Paper Remaining: The remaining amount is managed on control panel.Media Thickness: Roll : 0.05 mm to 0.21 mmASF/Cutsheet : 0.12 mm to 0.27 mm

Inks and Consumables:


Inks and Consumables: Auto Cutter Spare Blade, Maintenance Box

Connectivity:


Interface: Super-Speed USB*, 100BASE-TX /1000BASE-T/IEEE802.11b/g/n (*Compatible with the USB 3.0 Specification.)Software to be Downloaded: WindiwsInstall NaviFirmware Updater, HDI Driver, CopyFactory, EpsonNet SetupManagerMacInstall Navi - Printer driver - EpsonNet Config - Eposn Software Updater - Uninstaller - EPSON manualsFirmware UpdaterLinuxPrinter driverPrinter Languages : ESC/P rasterHP-GL/2,HP RTL ** (** It might not work correctly with depending on customer’s application and data. Please contact with us beforehand ifyou plan to use the HP-GL/2 connection.”*HP-GL/2 and HP RTL are trademarks of Hewlett-Packard Company.)

Supported OS and Applications:


Supported OS: Windows 10/8.1/8/7/Vista/XPCPU : Core 2 Duo 3.05GHzMemory : Memory more than 1GBHDD : Free space more than 32GB
Macintosh Mac OS X(10.6.8 or later)CPU : Core 2 Duo 3.05GHzMemory : Memory more than 4GBHDD : Free space more than 32GBBundled Applications: Bundled in CD: Windiws Install Navi - Printer driver - EpsonNet Setup - EpsonNet Print - EpsonNet Config - Eposn Software Updater - LFP Print Plug-in for Office - EPSON manualsMacSetup Navi

Notes:

* This product uses only genuine Epson-brand cartridges. Other brands of ink cartridges and ink supplies are not compatible and, even if described as compatible, may not function properly.

1 Print speeds are based on the print engine speed only. Total throughput time for any print depends on workstation configuration, file size, print resolution, ink coverage, networking, etc. Actual print speeds will vary.

2 Wi-Fi CERTIFIED™; level of performance subject to the range of the router being used. Wi-Fi Direct may require printer software.

3 Most features require an Internet connection to the printer, as well as an Internet- and/or email-enabled device. For a list of Epson Connect™ enabled printers and compatible devices and apps, visit http://site.epson.asia/india/epsonconnect/index.html

4 Product size excluding stand.

Specification Notes:

* This printer is designed for use with Epson genuine cartridges and ink only, not third-party cartridges or ink.

1 Print speeds are based on the print engine speed only. Total throughput time for any print depends on workstation configuration, file size, print resolution, ink coverage, networking, etc. Actual print speeds will vary.

2 Product size excluding stand.

3 Most features require an Internet connection to the printer, as well as an Internet- and/or email-enabled device. For a list of Epson Connect™ enabled printers and compatible devices and apps, visit http://site.epson.asia/india/epsonconnect/index.html

4 Wi-Fi CERTIFIED™; level of performance subject to the range of the router being used. Wi-Fi Direct may require printer software.

5 Cartridge yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature. For print quality, a variable amount of ink remains in the cartridge after the “replace cartridge” indicator comes on. The printer ships with full set of initial cartridges (CMY – 26 mL/Black – 50 mL) and part of the ink from the first cartridges is used for priming the printer.

6 High-volume cutting of canvas and heavy media stocks may require frequent cutter replacement.

7 Allowed by printer driver for Mac and PC. Application, version of application and operating system version may limit maximum length.
