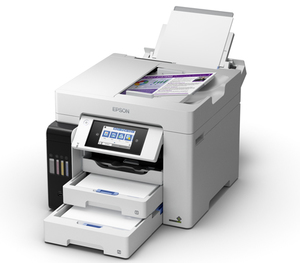

EcoTank L6580 Wi-Fi Duplex Multifunction ADF InkTank Office Printer with PCL support

BRINGING THE COMBINED POWER OF QUALITY, FUNCTIONALITY AND SPEED TO OFFICE PRINTING.

Cut through demanding workloads with the EcoTank L6580 colour printers. High print speeds of up to 25 ipm*1 and the all-in-one capability enable seamless printing, copying and scanning of office documents without any delays. Print letterheads, envelopes and even engineering drawings at the finest quality with Epson’s DURABrite ET inks. Print using WiFi Direct from any smart device, or print using the intuitive 10.9 cm (4.3”) touchscreen to make your office printing effortless.

Get more done in less time
Get the edge with this fast and efficient printer that can deliver a first page in as little as 5½ seconds*5 and print speeds of 25ppm in both black and colour*1. Coupled with fast double-sided printing, and a high speed Automatic Document Feeder, you’ll be able to speed through everyday tasks.

Feature-rich A4 EcoTank
The L6580 is designed for business with print, scan, copy and fax. Selecting features is easy with the 10.9cm LCD touchscreen.

Keep on saving
Save every time you print with this EcoTank that delivers an incredibly low cost per page. Unlike other printers, EcoTank features large ink tanks that you fill with low-cost ink bottles.

End interruptions
Minimising refills, this EcoTank can print thousands of pages before needing more ink, while the two 250 sheet front loanding paper trays and a generous 50-sheet rear feed offer a capacity of 550-sheets.

Print from almost anywhere
It's easy to print from mobiles, tablets and laptops using EcoTank. With Wi-Fi and Wi-Fi Direct, you can send documents to print from smart devices using the Epson iPrint*6 app.

Easy to use and reliable

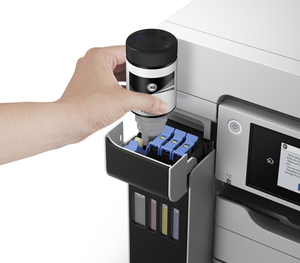

Filling the large front ink tanks is simple with the resealable, intuitive and drip-free ink bottles. This printer uses the heat-free PrecisionCore printhead, that's renowned for its speed, quality, reliability and efficiency, and will last the lifetime of the printer.

Printing:


Printing Technology: PrecisionCoreā„¢ Print HeadNozzle Configuration: 800 Nozzles Black, 800 Nozzles per ColorPrint Direction: Bi-directional printingMaximum Print Resolution: 4,800 x 2,400 DPIMinimum Ink Droplet Size: 3.8 plPrinter Language: ESCP-R / ESCP-Raster, PCL and Post ScriptAutomatic 2-sided Printing: Yes (Up to A4)

Print Speed:


Photo Default - 10 x 15 cm / 4 x 6 " *2: Approx. 26 sec per photo (Border/Borderless)Draft, A4 (Black / Colour): Up to 32 ppm / 32 ppmISO 24734, A4 Simplex (Black / Colour): Simplex: Up to 25 ipm / 25 ipmISO 24734, A4 Duplex (Black / Colour): Duplex: Up to 21 ipm / 21 ipm

Interface:


USB: USB 2.0Network: Ethernet, Wi-Fi IEEE 802.11b/g/n, Wi-Fi DirectNetwork Protocol: TCP/IPv4, TCP/IPv6, LPD, IPP, PORT9100, WSDNetwork Management Protocols: SNMP, HTTP, DHCP, BOOTP, APIPA, PING, DDNS, mDNS, SLP, WSD, LLTD

Scan Speed:


Flatbed (Black / Colour): 5 sec / 10 secADF Monochrome (Simplex / Duplex): Up to 27.5 ipm / 11 ipmADF Colour (Simplex / Duplex): Up to 9.0 ipm / 6.0 ipm

Noise Level:


PC Printing/ Premium Glossy Photo Paper Best Photo: 38 dB (A)PC Printing / Plain Paper Default *3: 52 dB (A)

Copy Function:


Reduction / Enlargement: 25 - 400%Maximum Copy Size: LetterCopy Resolution: 600 x 600 dpiMax Copies: 99 copies

Copy Speed:


ISO 29183, A4 Simplex Flatbed (Black / Colour): Up to 23 ipm / 23 ipmISO 24735, A4 Simplex ADF (Black / Colour): Up to 22.5 ipm / 22.5 ipmISO 24735, A4 Duplex ADF (Black / Colour): Up to 19.0 ipm / 19.0 ipm

Scan Function:


Scanner Type: Flatbed colour image scannerSensor Type: CISOptical Resolution: 1200 x 2400 dpiScanner Bit Depth (Colour): 48-bit input, 24-bit outputScanner Bit Depth (Grayscale): 16-bit input, 8-bit outputScanner Bit Depth (Black & White): 16-bit input, 1-bit outputScan Speed (Flatbed / ADF (Simplex)): 200dpi, Black: 12 sec / 5.0 ppm

ADF Specifications:


Support Paper Thickness: 64-95 g/m2Paper Capacity: 50 sheets

Fax Function (Optional):


Type Of Fax: Walk-up black-and-white and colour fax capabilityReceive Memory / Page Memory: 6 MB, Page memory up to 550 pagesError Correction Mode: ITU-T T.30Fax Speed (Data Transfer Rate): Up to 33.6 kbps, Approx. 3 sec/pageFax Resolution: Up to 200 x 200 dpiTransmission Paper Size (Flatbed): A4Transmission Paper Size (ADF): A4Receiving Paper Size: Half Letter, A5, B5, A4, Letter, LegalSpeed Dial / Group Dial: Up to 60 numbers, 30 groupsFax Features: PC Fax (Transmission/Receive), Automatic Redial, Address book, Broadcast Fax (Mono Only), Transmit Reservation, Polling Reception, Fax Preview, Memory reception, Fax to Email, Fax to Folder, Automatic 2-sided Fax

Paper Handling:


Number of Paper Trays: THREE (2-Front Cassette, 1-Rear Feeder)Standard Paper Input Capacity: Cassette1: 250 sheets; Cassette 2: 250 sheets; Rear feeder: 50 sheetsOutput Capacity: 125 sheetsMaximum Paper Size: 215.9 x 600 mmPaper Sizes: A4, Letter, Legal, B4, B5, A5, B6, A6, 8.5 x 13", 5 x 7", 4 x 6", 8 x 10", Legal (8.5 x 14"), 16:9 wide, Envelopes: #10, DL, C6, C4Paper Feed Method: Friction feedPaper Size: Legal, 8.5 x 13 ", Letter, A4, 195 x 270 mm, B5, A5, A6, 100 x 148 mm, B6, 5 x 7 ", 4 x 6 ", Envelopes #10, DL, C6Print Margin: 3 mm top, left, right, bottom via custom settings in printer driver

Mobile and Cloud Solutions:


Epson Connect Features: Epson iPrint, Epson Email Print, Remote Print Driver, Scan to CloudOther Mobile Solutions: Apple AirPrint, Mopria Print Service

Supported OS and Applications:


Supported OS: Windows XP / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 Mac OS X 10.6.8 or laterSoftware: Epson ScanSmart

Consumables:


Black Ink Bottle: 7,500 pages *4 - C13T06G198Cyan Ink Bottle: 6,000 (Composite Yield) *4 - C13T06Y298Magenta Ink Bottle: 6,000 (Composite Yield) *4 - C13T06G398Yellow Ink Bottle: 6,000 (Composite Yield) *4 - C13T06G498L6000 Series Maintenance Box: Order Code: C12C934601

Printer Type:


Printer Type: Print, Scan, Copy, Fax with ADF

General Impact:


Printer Language: PCL and Postscript advantage for Professional DTP and graphics applications/Architecture Applications/ Designing Application

Notes:

*1Determined in accordance with ISO/IEC 17629 showing the average of FPOT(sec) from the Office Category Test for default A4 simplex. For more information, please visit www.epson.eu/testing.

*2 Glossy paper drying time is minimum 24 hours as the inks used are pigment-based.

*3 Default mode in accordance with ISO7779 for MFPs

*4 Quoted yields are based on the ISO 24711/24712 patterns of mixed text and colour graphics with Epson methodology. Quoted yields are based on the replacement ink bottles purchased. For print quality, part of the ink from the included bottles is used for printer startup so yields could be lower than those of replacement ink bottles. Actual yields will vary due to reasons including images printed, print settings, temperature and humidity. Yields may be lower when printing infrequently or predominantly with one ink colour. Ink is used for both printing and printhead maintenance. All inks are used for both black and colour printing.

*5Determined in accordance with ISO/IEC 24734 showing the average of ESAT from the Office Category Test for default simplex. For more information visit www.epson.eu/testing.

*6Requires a wireless connection to the internet. For more information click here: site.epson.asia/india/epsonconnect/index.html
