24-Pin Dot Matrix Printers Epson LQ-590IIN

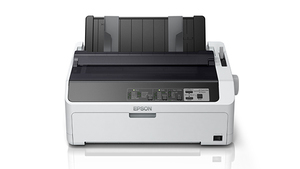

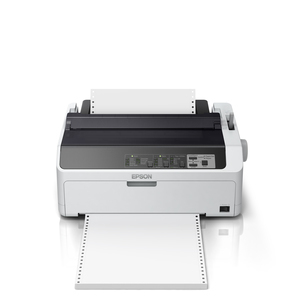

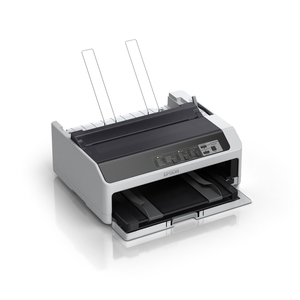

Epson LQ-590IIN Dot Matrix Printer

AN EFFICIENT, RELIABLE AND AFFORDABLE PRINTER YOU CAN RELY ON.

The Epson LQ-590IIN comes with built-in network connectivity and is designed to offer busy offices extraordinary speed, output quality and reliability. Based on Epson’s experience in delivering industry-standard solutions, this printer helps you run and grow your business and stay in control of your operations. Easily manage and print seven-part forms* and reports at print speeds of up to 487 characters per seconds (cps) to deliver fast results and speedy transactions. Moreover, with a high character yield of up to 5 million characters, you can do more with less.

* For continuous paper only.

      • 24-pins Impact Printer
      • Print speeds of up to 487 cps (10 cpi)
      • 128 kb memory buffer
      • MTBF of 25,000 POH
      • Built-in network connectivity


        Improved Efficiency, Proven Reliability



Increased Productivity
Enjoy maximum productivity with fast print speeds of up to 487 cps (10 cpi) and 128 kb memory buffer.

Long-life Reliability
Enjoy cost savings, superior print quality and minimal downtime with a MTBF of 25,000 POH.

Absolute Convenience
Experience fuss-free printing with built-in network connectivity via Ethernet cable.

What's in the box:

  • Main Unit
  • CD-ROM
  • Set-up Manual
  • AC Power Cable
  • Ribbon Cartridge
  • Guide Stacker
  • Wing
  • Tractor

Printing Technology:


Print Method: Impact dot matrixControl Panel: 6 switches and 10 LEDsPrint Direction: Bi-direction Number of Pins in Head: 24Control Code: ESC/P2, IBM PPDS

Reliability:


Printhead Life: 400 million strokes / wireMean Print Volume Between Failure (MVBF): 50 million lines (except print head)Mean Time Between Failure (MTBF): 25,000 Power On Hours (POH) (25% Duty)

Print Characteristics:


Character Sets: 1 Italic and 12 graphical character tables: Italic table, PC437 (US, StandardEurope), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15Bitmap Fonts: 10, 12, 15 cpiScalable Fonts: Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5pt., 8pt - 32pt. (every 2pt.)Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A , UPC-E, Code 39, Code 128, POSTNET

Paper Path:


Manual Insertion: Front or Rear in-Top outPush Tractor: Front or rear in, top outPull Tractor: Front, rear or bottom in, top out

Paper Media:


Cut Sheet (Single Sheet): Entry: Front
Length: 100 - 364 mm (3.9 - 14.3”)
Width: 100 - 257 mm (3.9 - 10.1”)
Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055”)
Entry: Rear
Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055”)Cut Sheet (Multi-part Forms): Entry: Front
Length: 100 - 364 mm (3.9 - 14.3”)
Width: 100 - 257 mm (3.9 - 10.1”)Envelopes: No.6, No.10Envelope (No.6): Entry: Rear
Length: 92mm (3.6”)
Width: 165mm (6.5”)Envelope (No.10): Entry: Rear
Length: 105mm (4.1”)
Width: 241mm (9.5”)Continuous Paper (Single Sheet): Width: 101.6 - 254mm (4.0”-10.0”) Labels: Total Sheet Thickness: 0.16 - 0.19mm (0.0063" - 0.0075")Label (Base Sheet): Entry: Bottom
Length: 101.6 - 558.8 mm (4.0 - 22.0”)
Width: 100 - 148 mm (3.9 - 5.8”)Card: Entry: Front, Rear
Length: 100 - 148 mm (3.9 - 5.8”)
Width: 100 - 148 mm (3.9 - 5.8”)
Thickness: 0.22mm (0.0087”)Roll Paper: Entry: Rear
Diameter: 127mm (5”) Line Spacing: 4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)

Consumables:


Ribbon Cartridge Black: Fabric Ribbon Cartridge (Black)

Environmental Conditions (Operating):


Temperature: 5 - 35 °C*2Humidty: 10 - 80% RH*2Electrical Specification: Electric Power Consumption: Operating: 49W; Sleep Mode: 0.5W; Power Off: 0.1W in power off modeRated Voltage: AC 220 - 240 VRated Frequency: 50Hz - 60Hz

Acoustic Noise:


Acoustic Noise: 55dB

Input Data Buffer:


Input Data Buffer: 128KB
