Epson EB-700U Ultra-short Throw Laser Full HD 3LCD Projector


Epson EB-700U is your most impressionable Full HD ultra-short throw laser projector for the retail environment. Coupled with outstanding flexibility and portability, projections look phenomenal even in tight spaces. Every component is skilfully innovated with attention to detail in mind, including the integrated 3LCD technology that will provide you with stunning colour brightness for quality images.

      • Beyond Full HD resolution
      • White and colour brightness of 4,000 lumens
      • No lamp change with laser light source
      • Ultra-short Throw 80” 47cm
      • Multi-direction Projection
      • Multi-PC Projection

Truly Unmatched Performance
Revolutionary Laser Light Source
Blue light from the laser is projected through a beam splitter, which divides the light into two beams. One beam is reflected by a phosphor wheel, changing it into yellow, while the other beam remains blue. The two beams are then recombined into white light and separated into red, green and blue through dichroic mirrors. Each of the three colours passes through LCD panels, producing three individual images, which are transmitted through a prism and combined into the final full-colour image.

Worry-free Projection
With multiple laser diodes to rely on, the screen won’t go black even if one diode goes out. This eliminates the worry of the projector light burning out while displaying your advertisements.

Inorganic LCD Panels and Phosphor Wheel for
Outstanding Reliability
Made of inorganic material, Epson’s newly developed phosphor wheel offers superior light and heat resistance to deliver excellent reliability. By combining this with our inorganic LCD panels, we create laser projectors that project bright, vibrant images for extremely long periods.

20,000 hours of Maintenance-free Use**
Engineered with inorganic LCD panels and an inorganic phosphor wheel, this newly designed laser light source delivers 20,000 hours* of maintenance free use. In addition, with the advanced electrostatic filter having an equally long-lasting life, you enjoy peace of mind in using these highly reliable laser projectors.

*Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environments.

Well-balanced Whites
White light is created through combining the blue and yellow light beams. The advanced optical engine in the EB-700U series precisely adjusts the blue and yellow light to create brilliant white highlights, bringing a refreshing vibrancy to your images.

Fine-tuning Brightness
The EB-700U series provides precise brightness adjustment in increments of 1%. This combined with the Constant Brightness mode maintains brightness at a given value to match the venue or subject to deliver astonishing picture quality.

Amazing Flexibility
Multi-direction Projection
The EB-700U can be rotated 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness. This makes it ideal for a wide range of applications, such as projecting onto ceilings and floors. Furthermore, the newly supported portrait projection allows for more installation flexibilities.

Digital Signage without PC
Project contents on walls, ceilings and floors without needing to connect to a PC. Simply insert the USB stick that has your content into the projector and it is ready to be projected. Whether it is images or MJPEG videos, the EB-700U makes it easy and convenient.

Stunning Large Projections in Small Spaces
With the ultra-short throw capability, it is now possible to project a large screen within the narrow space of retail windows. You can now create captivating window displays with the help of large projections to increasethe visibility of store merchandise.

Quick Start-up Time
Equipped with laser light technology, the EB-700U starts up within 5 seconds, ensuring smooth and timely displays. Fast and efficient, your advertisements are always ready for display at a moment’s notice.

Spectacular Projections
WUXGA – Beyond Full HD Resolution
With WUXGA resolution (1,920 x 1,200 pixels), you enjoy a sharp, clear display of Full HD video (1,920 x 1,080 pixels) images down to the smallest details even on large-screen projections for an incredible and dynamic viewing experience.

Colour Adjustment
With the colour adjustment function, you can easily adjust the hue, saturation and brightness for each component of RGBCMY to match your preferences.

No Reflection Glare on Projection
Unlike conventional display methods, projections from EB-700U are not subjected to glare from fluorescent lamps and sunlight from windows. The audience will not be distracted by such reflections and all information projected can always be clearly seen.

Ease of Maintenance
Epson Projector Management
With Epson’s network monitoring and control software, you can see from a single PC which projectors are available and whether they are running efficiently – even across the biggest network. You can configure your projectors and access their serial numbers remotely, as well as receive instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating laser diode.
Now you can send messages or announcements as JPEG files simultaneously to any number of projectors on a network. This makes the EB-700U projector series very useful for immediate communication needs or even emergencies.

Superior Dustproof Design
A revolutionary high-performance filter and an improved dustproof structure help prevent dust from entering the optical engine. Thanks to this clever dust-proof design, it enables higher brightness that can last longer compared to conventional models. The airflow is also optimized such that the unclean air does not blow directly into the optical engine.

Scheduling function
The EB-700U Series can run programs as scheduled with a built-in clock. You can set the times for turning projectors on and off daily as necessary.

Web Control
By connecting your projector to a network, you can adjust your projector installation entries from a PC or smart device.

What's in the box:

Supplied Accessories
Power Cable: 4.5m
Computer Cable: 1.8m
Remote Control: Yes, with battery attached
Foot for main unit: Yes

Optional Accessories
Air Filter: ELPAF43
Wireless LAN Unit: ELPAP10

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system


Network: Wired LAN: RJ45 x 1 (100 Mbps)
Wireless: Yes (ELPAP10 Option)Analog Input: D-Sub 15Pin: 1 (Blue)

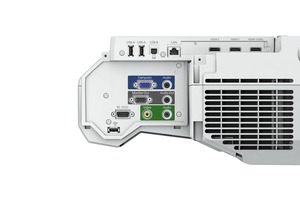

Composite: RCA x 1 (Yellow)Digital Input: HDMI: 3 (HDMI1 in common with MHL)Analog Output Terminal: D-Sub 15Pin: 1 (Black)Audio Input: Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Control I/O: RS-232C: D-sub 9 pin x 1Others: USB Type A: 2 (for USB Memory, USB Document Camera, Firmware update, Copy OSD Settings)
USB Type B: 1 (for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings)

Contrast Ratio:

Contrast Ratio: Over 2,500,000:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode: IEEE 802.11b: 11 Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 130 MbpsWireless LAN Security: Quick Mode: OPEN, WPA2-PSK
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAPSupported Connection Mode: Infrastructure, Access Point

Screen Size (Projected Distance):

Standard Size: 90” screen [53 to 72.8 cm]Zoom : Wide: 70” to 130” [40.5 to 78.1 cm]Zoom : Tele: 70” to 130” [55.8 to 106.7 cm]

Geometric Correction:

Vertical/Horizontal Keystone: 3 to +3 degrees | -3 to +3 degreesQuick Corner: Yes

Start-Up Period:

Start-Up Period: Less than 9 seconds (Epson Logo)
Quick Startup: Appox 5 seconds (HDMI / Computer / Video input)
Warm-up period: 30 seconds

Internal Speaker(s):

Sound Output: 16W Mono x 1

Direct Power On/Off:

Direct Power On/Off: Yes / Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D): 494 x 172 x 437 mm

Air Filter:

Maintenance Cycle: Normal / Extended: 20,000H / 30,000H


White Light Output (Normal / Extended): 4000 lm / 2800 lmColour Light Output (Normal / Extended): 4000 lm / 2800 lm

Direct Power On / Off:

Direct Power On / Off: Yes


**20,000H life is for Laser light source; Maintenance free: No maintenance for the light source required up to 20,000H. Replacement of parts other than the light source may be required in a shorter period.
