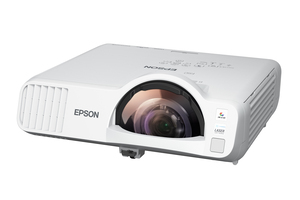

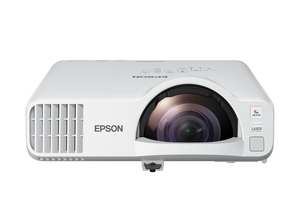

Epson EB-L210SF Wireless Full HD Short Throw Laser Projector

Lamp-free laser display for the classroom projects easy-to-read images up to 318cm (125")

    • Change the way you think about classroom displays with the EB-L210SF. Delivering 4,000 lumens of color and white brightness1 and high-quality Full HD 1080p resolution at up to 318cm (125") diagonal size—more than three times larger than a 75" flat panel—this short throw lamp-free laser display brings stunning clarity to presentations and encourages engagement with large, bright and easy-to-read images from nearly anywhere in the classroom. Engineered for reliability, this display has a 20,000-hour, virtually maintenance-free laser light source2, so there are no lamps to replace—ever. Sharing your lesson plans just got easier with wireless connectivity from PCs, Mac® computers, Chromebooks, and Android™ and iOS® devices3, as well as split screen functionality4 to display up to four devices simultaneously. You can project brilliant images, inspire collaboration and enjoy ease of use with the EB-L210SF—all at a remarkable value.

      • 4,000 lumens of colour and white brightness1
      • Full HD 1080p resolution for images up to 318cm (125")
      • 20,000-hour lamp-free laser light source2
      • Images more than three times larger than a 75" flat panel
      • Instant-on laser light source





High brightness
With powerful brightness of up to 4,000 lm, EB-L210SF delivers clear and detailed images even in bright environments.


Massive, wide clear content for a full, uncompromised learning/ meeting experience at a short throw distanceEnjoy a dynamic wide screen viewing experience with our short-throw model - EB-L210SF. Projecting up till 119" for 21:9 aspect ratio, our EB-L210SF allows users to experience all learning contents and interaction all at the same time - virtual meeting or hybrid learning.



High image qualityDelivering exceptional clarity at Full HD resolution, EB-L210SF ensures visual quality while maintaining a short throw distance.



One projector, multiple possibilitiesAn adaptable piece that serve your every needs, EB-L210SF powers it up to put your statement pieces in the limelight, from projection signage at your reception to sharing your business-shaping ideas.

Wireless Specifications (Screen Mirroring):


Supported Speed: Infrastructure: IEEE 802.11b (2.4GHz): 11 Mbps5; IEEE 802.11g (2.4GHz): 54 Mbps5; IEEE 802.11n (2.4GHz): 72.2 Mbps5; IEEE 802.11a (5GHz): 54 Mbps5; IEEE 802.11n (5GHz): 150.0 Mbps5; IEEE 802.11ac (5GHz): 325Mbps5; Access Point(Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps5; IEEE 802.11n (2.4GHz): 72.2 Mbps5; IEEE 802.11a (5GHz): 54 Mbps5; IEEE 802.11n (5GHz): 150.0 Mbps5; IEEE 802.11ac (5GHz): 325Mbps5

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

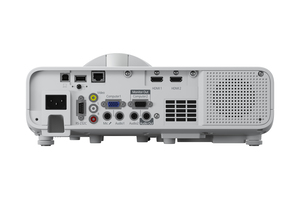

Connectivity:


Network: Wireless: Built-in and Optional (Using ELPAP11)
Wired Lan: RJ45 x 1 (100Mbps)Analog Input: D-Sub 15Pin: 2 (RGB)
Composite RCA x 1 (Yellow)Digital Input: HDMI: 2 (HDCP 2.3)Analog Output: D-Sub 15Pin: 1 (Black) (in common with Computer 2)Output Terminal: D-Sub 15Pin: 1 Shared with Computer 2Audio Input: RCA: 1 (White, Red)
Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Audio Out: Stereo Mini Jack: 1Mic I/O: Mic In: 1 (Stereo Mini)Control I/O: RS-232C: D-Sub 9pin x 1Others: USB Type A: 1 (For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
USB Type B: 1 (for Firmware Update, Copy OSD Settings) Mic I/O: Stereo Mini x 1

Projection Lens:


Type: Optical Zoom (Manual) / Focus (Manual)Focal Length: 6.4mmZoom Ratio: 1.0 – 1.62 (Optical Zoom)F-number: 1.6Screen Size:Standard Size: 90" screen 91 cm
Zoom : Wide: 55" to 125" [54 cm to 127 cm]Throw Ratio Range: 0.45 – 0.61

Contrast Ratio:


Contrast Ratio: Over 5,000,000:1

Screen Size (Projected Distance):


Standard Size: 90" screen 91 cmZoom : Wide: 55" to 125" [54 cm to 127 cm]

Geometric Correction:


Vertical/Horizontal Keystone: ±15° / ±15° (Zoom: Centre)Quick Corner: Yes (Manual)

Operating Altitude:


Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:


Start-Up Period: Less than 9 seconds, Warm-up Period: 30 secondsQuick Start-Up: Quick Start-Up: Less than 5 seconds (Display)

Internal Speaker(s):


Sound Output: 16W Monaural

Direct Power On/Off:


Direct Power On/Off: Yes

Air Filter:


Type: Electrostatic FilterMaintenance Cycle: 20,000 hours*2

Main Parts Specification:


LCD: Size: 0.67” (C2fine)
Resolution: Full HD (1080p)*Lightsource: Type: Laser Diode

Lightsource:


Type: Laser DiodeLife (Normal/Long): Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs

Short Throw Zoom Lens:


Operating Temperature: 0 – 2286m (0-7500ft): 0°C - 40°C (32°F - 104°F); 20%-80% Humidity, No Condensation
Over 2286m(7500ft): 0°C - 35°C (32°F - 95°F); 20%-80% Humidity, No Condensation

Power Consumption (220-240V):


Lamp (Normal / Extended): 260W / 191WStandby: 2.0W / 0.5W (Network On / Off)

Dimension (Not including protruding parts):


Open (D x W x H): 337mm x 325mm x 90mmWeight: Approx. 4.6kg

Direct Power On / Off:


Direct Power On / Off: Yes

Optional Wireless & Built In Lan Specifications:


Supported Speed for each Mode: Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps5, IEEE 802.11n (2.4GHz): 72.2Mbps5, IEEE 802.11a (5GHz): 54Mbps5, IEEE 802.11n (5GHz): 150Mbps5, IEEE 802.11ac (5GHz): 325Mbps5Supported Security Type: WPA2-PSK (AES)Supported Mode: Access Point (Wi-Fi Direct)

Brightness:


White Light Output (Normal / Extended): 4000lm / 2800lmColour Light Output: 4000lm2

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

3 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats.

4 Consult your user manual for Split Screen input combinations.

5These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.
