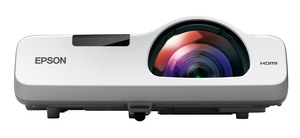

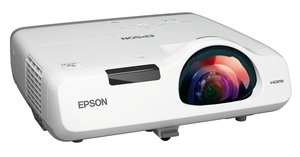

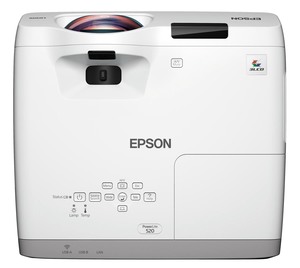

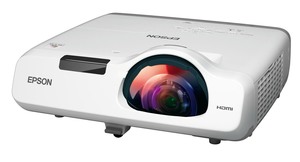

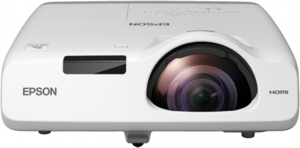

Epson EB-520 Short Throw XGA 3LCD Projector

More Immersive Projection, Less Interference

Project large screen sizes even at close range and make your presentations larger-than-life with Epson EB-520 projector.

      • White and Colour Brightness at 2,700lm
      • XGA Resolution
      • Multi-PC projection
      • HDMI Connectivity
      • Optional Wi-Fi with adaptor ELPAP07



Superb Short-throw Performance
Impressive Screen Size at Close Range
Deliver uninterrupted presentations every time with Epson EB-520 projector. This projector boasts a throw ratio as low as 0.48, allowing you to project an 80-inch large screen from just 83cm away.

Reduced Shadow Interference & Minimised Glare
The short throw distance also significantly reduces glare on the presenter and shadow interference on the screen, making the viewing experience conducive and comfortable for everyone in the room.

Eco-friendly and Cost-efficient
Longer Lamp Life
With a long lamp life of 10,000 hours in eco-mode, the frequency of costly lamp replacements is reduced, saving you time and money.

Light Optimiser
Save energy consumption and do your part for the environment with the eco-friendly Light Optimiser function. This feature automatically adjusts projection brightness according to image content brightness, giving you power and cost savings. This function can be turned on/off according to your preference.

Flexible Positioning
Effective Use of Space
Epson EB-520 gives you greater possibilities for all kinds of creative applications, even in areas with limited space. The projector can be mounted on a wall or set on a desktop and is effective on any surface, be it a flat wall, a whiteboard or even a chalkboard.

This means you can maximise the use of limited classroom or office space by turning any existing board into a projection surface. Despite the limited space, bright and large projections are still easily achievable.

Wide Range of Connectivity
Full Compatibility
Advanced connectivity features mean convenient and hassle-free projections of your presentations. With wide-ranging interfaces, Epson EB-520 not only corresponds with multiple conventional analogue sources, they are also compatible with HDMI input.

Epson iProjection*
With the iProjection application for both iOS and Android, wireless projection from a smart device is made possible. This feature supports various files and allows you to present your smartphone contents with ease. iProjection also corresponds with your smartphone's touch-screen operations, such as flicking to turn pages and pinching to zoom in or out.

* In iProjection, projector profile search, multi-screen display, distribution function, audio transfer, movie file transfer, interrupt connection disabling and encryption data transfer capabilities are not supported.

USB 3-in-1 Display
Image projection, sound transmission and mouse operation can all be conveniently carried out with a single USB connection, eliminating the hassle of separate and messy cabling.

EasyMP Network Projection
The EasyMP Network Projection enables users to configure both wired and wireless connections with high-quality audio output and conduct meetings simultaneously in up to four different locations.

EasyMP Monitor
The EasyMP Monitor lets you efficiently monitor and configure multiple networked projectors from a single PC. You also have the ability to broadcast messages to all projectors for announcements or emergencies.

Multi-PC Projection
With the control of a host PC, up to 50 terminals can be connected via the multi-PC projection to a single projector. The host PC acts as a moderator, selecting media from up to four PCs or smart devices to be projected simultaneously. With the moderator function, you can maintain control and prevent tampering of whats projected on screen.

MRP of replacement lamp for this product is Rs. 6999/-.

What's in the box:

Power Cable: 4.5m
Remote Control: Yes, with Alkaline AA Battery
Computer Cable (VGA Cable): 1.8 m
Software CD-ROM

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness2:


White Light Output (Normal/Eco): 2,700lm / 1,600lmColour Light Output: 2,700lm

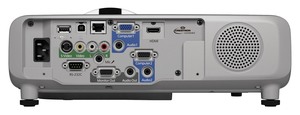

Connectivity:


Network: Wired LAN: RJ45 x 1 (100Mbps)
Wireless LAN: Optional (ELPAP07)Analog Input: D-Sub 15Pin: 2 (Blue)
Composite: RCA x 1 (Yellow)
S-Video: 1Digital Input: HDMI: 1Audio Input: RCA (White/Red): Yes
Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Control I/O: RS-232C: D-Sub 9pin x 1Video Output: Monitor Out: 1

Contrast Ratio:


Contrast Ratio: 16,000:1

Screen Size (Projected Distance):


Zoom : Wide: 50" - 108" [0.54 - 1.22 m]Zoom : Tele: 37" - 80" [0.54 - 1.22 m]

Operating Altitude:


Operating Altitude: 0 - 3,000 m <0 - 9,843 ft>

Internal Speaker(s):


Sound Output: 16W Monaural

Direct Power On/Off:


Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):


Dimension Excluding Feet (W x H x D): 314.5 x 344 x 94 mm

Keystone Correction:


Vertical/Horizontal: ±15º / ±15º

Others:


USB Type A: 1 (for USB Memory, USB Document Camera, Wireless LAN, Firmware Update, Copy OSD Settings) USB Type B: 1 (for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings) Microphone Input: Stereo Mini Jack: 1

Start Up Period:


Start Up Period: Less than 7 seconds, Warm-up period: 30 seconds

Power Consumption (220-240V):


Lamp On (Normal/Eco): 278W / 219W Standby: Normal/Eco: 2.1W / 0.28W

Notes:

*1 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

*2 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.
