EB 109W WXGA 3LCD Projector

Widescreen classroom projector with enhanced connectivity and audio.

The bright, widescreen EB-109W classroom projector features advanced connectivity and premium 16 W audio. Offering remarkable color accuracy, Epson projectors deliver high Color Brightness1. This reliable performer features 4,000 lumens of color/white brightness2, plus WXGA resolution. Its long-lasting lamp, which delivers up to 12,000 hours in ECO Mode3, lowers maintenance costs.

      • Projection System: 3LCD, 3-chip technology
        Native Resolution: 1280 x 800 (WXGA)
        Color Brightness: 4000 lumens2
        White Brightness: 4000 lumens2
  • Remarkable color accuracy — High Color Brightness1 and wide Color Gamut6 with Epson
  • More accurate, vivid color, even in well-lit rooms — 4,000 lumens of equal color and white brightness2
  • Brilliant, widescreen image quality — native WXGA (1280 x 800) resolution; 16:10 format
  • Long-lasting, low-cost lamps — up to 12,000 hours in ECO Mode3
  • Two-way content sharing — teachers can push content from the projector to wirelessly connected devices and control which device screens to display; students can make notes and send their work back to the projector4
  • Advanced network control — RJ-45 and optional wireless connectivity for remote projector management, presentations over the network, and more
  • Flexible, easy setup — 1.2x optical zoom, ±30 degrees vertical and horizontal keystone correction, Easy-Slide control and Quick Corner®
  • 2x HDMI — connect multiple A/V devices; includes 1x MHL-enabled port5
  • Powerful, engaging sound — includes a built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode

What's in the box:

  • EB-109W Projector
  • Power cord
  • Computer cable (VGA)
  • Projector remote control
  • Batteries
  • Software CD
  • Quick setup sheet
  • Warranty card
  • Password protect sticker

Projection Technology:


Projection Technology: 3LCD Technology, RGB liquid crystal shutter

Brightness*2:


Colour Light Output: 4000 lumensWhite Light Output: 4000 lumens

Connectivity:

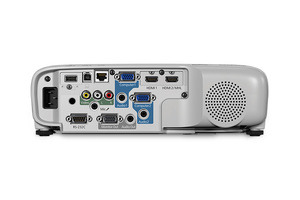

Security Features: Kensington®-style lock provision, Padlock, Security anchor barInterface: 1x USB-A, 1x USB-B, 1x LAN, 1x HDMI, 1x HDMI/MHL®, 2x Computer/Component, 1x Video, 1x RS-232c, 1x Stereo Mini-jack (Mic), 1x Monitor Out, Audio 1 & 2, Audio L & R, 1x Audio Out

Projection Lens:


Focal Length: 16.9 mm – 20.28 mmF-number: 1.49 – 1.72Screen Size: 30 inches - 300 inches (0.84 to 8.13 m) Zoom: Manual, Factor: 1.2Throw Ratio Range: 1.30 (Zoom:Wide), 1.56 (Zoom:Tele)

Contrast Ratio:


Contrast Ratio: 15,000:1

Geometric Correction:


Vertical/Horizontal Keystone: ±30° / ±30°

Operating Temperature:


Operating Temperature: 41° to 95° F (5° to 35° C)

Internal Speaker(s):


Sound Output: 2 Watt

Specifications Projector:


Color Reproduction: upto 1.07 billion coloursPixel Number: 1,024,000 dots (1280x800) x 3Aspect Ratio: 16:10Native Resolution: 1280 x 800 (WXGA)Resize: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA60-3), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 900 (WXGA++), 1600 x 1200 (UXGA60)

Power:


Power Consumption: ECO mode: 237 W, Normal mode: 326 WPower Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 HzTemperature & Humidity: Temperature: Operation 5° C - 35° C, Storage -10° C - 60° C; Humidity: Operation 20% - 80%, Storage 10% - 90%

Remote Control:


Features: A/V Mute, Freeze, Split, Aspect, Color Mode, Auto, MHL Menu, VolumeOperating Angle: 19.7' (6 m)Operating Distance: Right / Left: ±30 degrees, Upper / Lower: ±15 degrees

Main Parts Specification:


Lamp: 210 W UHELightsource: Lamp

Brightness:


Colour Light Output: 3,400 Lumen- 2,110 Lumen (economy) in accordance with IDMS15.4White Light Output: 3,400 Lumen - 2,110 Lumen (economy) in accordance with ISO 21118:2012Contrast Ratio: 15,000 : 1

Notes:

1 Color brightness (color light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

3 ECO Mode is up to 12,000 hours. Normal Mode is up to 6,000 hours. Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

4 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

5 Includes one Mobile High-Definition Link® (MHL) HDMI port.

6 Gamut volume in brightest mode, measured by a third-party lab in 3D in the CIE L*a*b* coordinate space.
