Epson LightScene EV-100 Accent Lighting 3LCD Laser Projector

The dynamic laser projector for digital art and signage.

    • Create stunning visual displays and immersive environments with the LightScene EV-100, the cutting-edge digital signage solution from Epson. A convergence of lighting and display technology, LightScene laser projectors captivate audiences by simultaneously illuminating and projecting on virtually any surface or material, unleashing dynamic, experiential content for digital art, commercial signage and décor applications. Designed to blend in discreetly to any setting — from retail, hospitality and event spaces to showrooms and museums — LightScene EV-100 offers a sleek, white spotlight design, with an array of configuration, mounting and programming options.

      • Laser projector for digital art and signage
      • Seamlessly blends into virtually any environment
      • Up to 20,000 hours of virtually maintenance-free operation1
      • 360-degree mounting: floors, walls or ceilings
      • Remote management and control tools
      • Best New Award Overall
      • Warranty- 3 years or 20,000 hours



Integrated lighting and digital display — project dynamic, experiential content to engage audiences in retail, hospitality and event spaces, showrooms and museums

Create head-turning digital signage — illuminate and project on virtually any surface or material, for digital art, commercial signage and décor applications

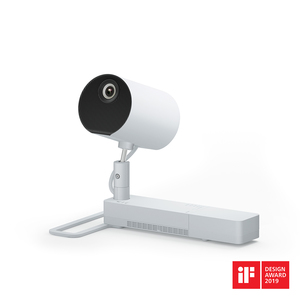

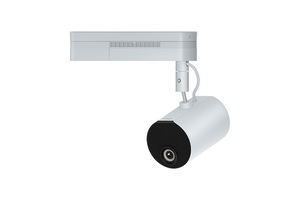

Blends in discreetly — sleek, white spotlight design easily blends into its surroundings, offering vertical and horizontal rotation, with flexible mounting on tracks, floors, walls or ceilings

Breakthrough laser technology — provides up to 20,000 hours of virtually maintenance-free operation1, plus a sealed optical engine, for amazing image quality matched by outstanding performance

Robust management and control tools — via Epson’s Web-based application or over the network with Crestron®, Art-Net and more

Scalable, for an array of applications — install multiple LightScene projectors and utilize Edge Blending technology for versatile, breathtaking displays

Easily programmable — includes templates, effects, color filters and customizable options; playlist and playback function allows for seamless content management for single or multiple LightScene projectors

Flexible positioning — 1.58x powered optical zoom, plus powered focus, allows the projector to be installed in both large and small spaces

Expansive connectivity — HDMI®, wired and wireless LAN, and SD card slot2 for direct content storage when needed

Bright visual display system — 2,000 lumens equal color and white brightness for vibrant, rich color3

Eco Features

  • RoHS compliant
  • Recyclable product

Better Products for a Better FutureTM
For more information on Epson's environmental programmes, visit http://global.epson.com/SR/environment
.

What's in the box:

Power Cable: 3m
Remote Control: Yes, with 2x AA Battery
Direct Mount Unit Set: Attached
Cable Cover: Yes
HDMI Cable Clamp: x2

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

Connectivity:


USB Interface: USB Type B: 1 (For firmware update)Network: Wireless LAN: in-built
Wired LAN: RJ45 x 1 (100Mbps)Digital Input: HDMI: 1Audio Output: Stereo Mini Jack: 1USB Input: USB Type A: 1 (For 1200mA power supply)
USB Type B: 1 (For firmware update)

Projection Lens:


Type: Optical Zoom (Powered) / Focus (Powered)Focal Length: 18.2mm-28.4mmZoom Ratio: 1 - 2.21 (Total)
1 - 1.58 (Optical Zoom)F-number: 1.51-1.92Throw Ratio Range: 1.38 - 2.19 (Wide to Tele)

Contrast Ratio:


Contrast Ratio: 2,500,000:1

Wireless Specifications:


Supported Speed for Each Mode: IEEE 802.11b: 11 Mbps*3
IEEE 802.11g: 54 Mbps*3
IEEE 802.11n: 130 Mbps*3Wireless LAN Security: Quick: WPA2-PSK, Advanced: WPA/WPA-PSKSupported Connection Mode: Infrastructure, Access Point

Screen Size (Projected Distance):


Standard Size: 60" screen 1.79m (Standard size)Zoom : Wide: 30" to 150" (0.88 to 4.51 m)Zoom : Tele: 30" to 150" (1.41 to 7.16 m)

Geometric Correction:


Vertical/Horizontal Keystone: ±45° / ±40°Quick Corner: Yes

Operating Altitude:


Operating Altitude: 0 m to 3048 m (0 ft to 10000 ft) (over 1500 m / 4921 ft : with High altitude mode)

Start-Up Period:


Start-Up Period: Less than 9 seconds
Warm-up period: 30 seconds

Cool Down Period:


Cool Down Period: Instant Off

Direct Power On/Off:


Direct Power On/Off: Yes / Yes

Dimension Excluding Feet (W x H x D):


Dimension Excluding Feet (W x H x D): Projection unit: Φ 175 x D260
Power supply unit: 361 x 65 x 110 mm (without Cable Cover)

Weight:


Weight: Approx. 15.2 lbs. / 6.9kg (Main Unit and Direct Mount unit)

Fan Noise:


Fan Noise (Normal / Eco): 34 / 22 dB

Power:


Power Supply Voltage: 220 V - 240 VPower Saving: 2.0W / 0.30WRecommended Operating Temperature & Humidity: 5 °C to 40 °C (41 °F to 104 °F) (20% - 80% humidity, No condensation)

Brightness:


White Light Output (Normal / Extended): 2000lm / 1000lm / 1000lmColour Light Output: 2000lmContrast Ratio: Over 2,500,000:1Colour Mode: Dynamic Normal

Adjustment Angle:


Adjustment Angle: Upper: 90° to Lower: 90°Adjustment Angle: 360°Adjustment Angle: 0° - 90° (Portrait projection)

Adjustment Functions:


Aspect Mode: Yes

Notes:

*1 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.  Also 20,000H life is for Laser light source; Maintenance free: No maintenance for the light source required up to 20,000H. Replacement of parts other than the light source may be required in a shorter period.


*2 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*3 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.
