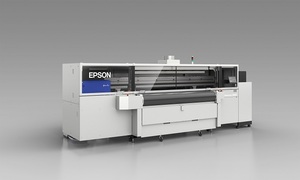

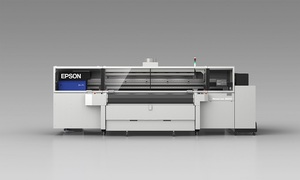

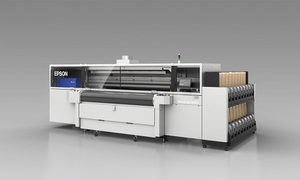

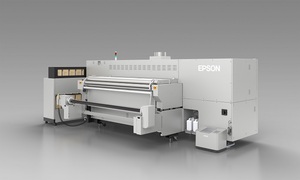

Monna Lisa ML-18000 Direct-to-Fabric printer

NEXT GENERATION PRODUCTIVITY WITH DOUBLE BLACK.

ML-18000 is a next-generation solution that will elevate your production capabilities and drive your business forward. Designed to deliver unparalleled performance, the Direct-to-Fabric printer is equipped with 18 PrecisionCore printheads and double black inks, offering the perfect combination of speed, productivity, and superior image quality. With its ability to enhance black density at high printing speeds, the ML-18000 ensures your designs stand out with striking clarity and depth. Also, built-in water recycling unit reduces environmental impact by conserving water, making it a smart choice for sustainable production.

Industrial Direct-to-Fabric pinter with 18 printheads
Double black ink technology
Built-in water recycling unit for a greener future
Excellent quality prints with Precision Dot Technology
Environmentally friendly Epson GENESTA Ink
Compact design and small installation footprint

Where to Buy

Overview

EPSON PRINTING TECHNOLOGY: ADVANCING DIGITAL FABRIC PRINTING

Boost your productivity
The ML-18000 features 18 of Epson’s latest 4.73-inch high-density PrecisionCore Micro TFP printheads, allowing it to deliver exceptional productivity (252 sqm/h, 600x600 dpi, 2 pass) without compromising on quality.

Double black ink technology
The innovative double black ink technology delivers rich, deep black tones even at high printing speeds, perfect for applications in fashion, interior design, and more. This printer enables you to achieve outstanding results with every print, keeping you ahead of the competition.

Reduced water usage by water recycling unit
Built-in water recycling unit conserves valuable water resources by filtering and recycling the water used for belt cleaning. The compact water recycling unit features a small footprint, allowing it to connect to the ML-18000 without disrupting printer setup or existing workflows.

Epson precision dot technology for world-renowned image quality
Epson precision dot technologies include microweave and lookup table (LUT) technologies that reduce banding and graininess, and new, advanced Multi-layer halftone technology randomizes the halftone dot pattern to reduce image degradation caused by dot misalignment.

Symmetrical color alignment and accurate belt positron control technology
The ML-18000 features symmetrical color alignment for consistent color overlap order during high-speed bidirectional printing, and accurate belt position control technology for precise fabric feeding.

Dynamic alignment stabilizer technology for uniform dot density
Dynamic alignment stabilizer technology ensures stable print quality by controlling waveforms on printhead chip to achieve higher dot placement accuracy and more uniform dot density on each pass.

Wide color gamut for high quality printing with fine details
The wide color gamut enables the creation of vivid designs. Color gradations, small texts, fine details, and complex geometric patterns can be printed with high image quality.

Smaller installation space
ML-18000 is 33% smaller working area comparison to conventional ML-16000.

Electric Power Consumption: Operating: 2.6 kW
Voltage: 380-415V, 3phase+Neutral+Earth
Frequency: 50/60 Hz

Dimensions (W x D x H): 4,740 x 2,660 x 1,830 mm (including ink rack)

Specifications

Printable Area and Accuracy:

Maximum Printable Length: UnlimitedMaximum Printable Width: 1,850mm / 72.8"
Max. Fabric Width:1,850mm / 72.8"

Roll Media Handling:

Maximum Roll Diameter: 400mm / 15.7"Maximum Roll Weight: 100kg Media Thickness: 5mm

Printer Details:

Belt Washing: AutomaticFabric Type: Max. Fabric Thickness: 5.0mm
Fabric Drive: Conveyor belt with thermoplastic adhesiveWeight: Approx. 2,350kgAir Consumption: Air Pressure: 0.45 - 1 Mpa; Air Tube Connection: φ8 mm
Ventilation:
Vent Air Flow: Min.900 m³/h
Vent Air Tube Connection: φ273 mmWater Consumption: Water Connection: Connect with a φ15 mm (int.diam) pipe; Water Flow: 90 L/h
Water Drain Connector: Connect with a φ25 mm (int.diam) pipeDisplay: 25.65cm (10.1-INCH) LCD Touch PanelOther Features: Printing Speed:
300 x 600 dpi, 1 pass: 450 (m²/h)
600 x 600 dpi, 2 pass: 252 (m²/h)
900 x 600 dpi, 3 pass: 162 (m²/h)
Printing Technology:
PrecisionCore inkjet technology
Number of Print Head: 18
Number of Colour: 8
Maximum Print Resolution:1,200 x 1,200 dpi

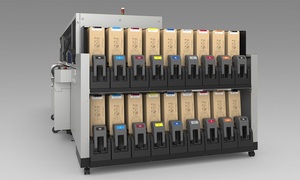

Inks and Consumables:

Inks and Consumables:GENESTA INK
Reactive: Black, Cyan, Magenta, Yellow, Grey, Red, Blue, Orange, Crimson
Ink Capacity: 10 liters

Connectivity:

USB Interface: USB3.0Network: Ethernet 1000BASE-T (for data communication except printing)
