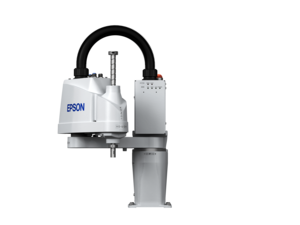

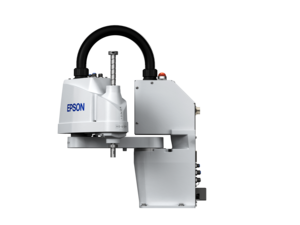

Epson Robot T3

A NEW DIMENSION IN SCARA PERFORMANCE

T Series robots feature a built-in controller for space-saving configuration flexibility and easy setup. Configuration ease ensures high productivity with minimum downtime, significantly reducing total cost of ownership (TCO).

      • Built in controller
      • Up to 3 kg payload
      • 400 mm arm length
      • Batteryless motor unit
      • Outstanding energy efficiency



Epson Robot T3 is rated 5.0 out of 5 by 1.
  • y_2019, m_11, d_20, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.3-b1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_IN, sid_T3, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_epson-en_in

Outstanding cost-efficiency and ease of use for significantly lower total operating cost.

  • Built-in controller reduces installation space and cabling requirements
  • Convenient I/O ports located close to effector (including 24V power supply)
  • Batteryless motor unit for lower maintenance costs
  • Operates on AC100V~240V power
  • Outstanding energy efficiency with 660VA maximum power consumption

General:


Mounting type: Table top Arm length: Joint #1 + #2: 400 mmMax. operating speed: Joint #1, #2: 3700 mm/s
Joint #3: 1000 mm/s
Joint #4: 2600°/s Weight: 16 kg, Cables not includedRepeatability: Joint #1, #2: ±0.02 mm
Joint #3: ±0.02 mm
Joint #4: ±0.02°Max. motion range: Joint #6: ±360°Payload: Rated: 1 kg
Maximum: 3 kg*1Standard cycle time*2: 0.54 secAllowable moment of inertia*3: Joint #4: 0.003 kgm2 (rated), 0.01 kgm2 (maximum) Motor power consumption: Joint #1: 1000WDown force: Joint #3: 83NInstalled wire for customer use: Hand I/O: IN6/OUT4 (D-sub 15pin), 24V
User I/O: IN18/OUT12Installed pneumatic tube for customer use: ø6 mm x 2, ø4 mm x 1: 0.59 MPa (6 kgf/cm2: 86 psi)Power / cable length: AC100-240V / 5mApplicable controller: Inside of manipulatorModel: StandardSafety standard: CE Mark
Rated 5 out of 5 by from Compact and cost effective We bought this product for our new project and it was very user friendly, compact size and cost effective..
Date published: 2018-12-07
  • y_2019, m_11, d_20, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.3-b1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_IN, sid_T3, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_epson-en_in

Notes:

*1: Do not apply the load exceeding the maximum payload.

*2: Cycle time based on round-trip arch motion (300mm horizontal, 25mm vertical) with 1kg payload (path coordinates optimized for maximum speed).

*3: If the center of gravity is at the center of each arm. If the center of gravity is not at the center of each arm, set eccentric quantity using INERTIA command.
