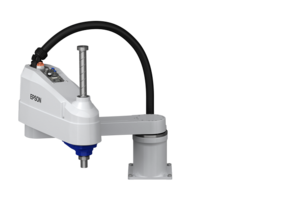

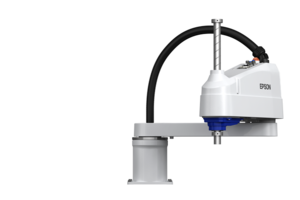

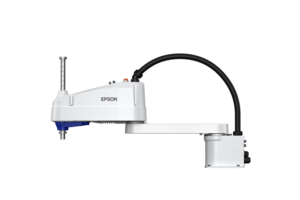

Epson LS10-B SCARA Robot - 600mm

Powerful performance and a large payload ― all at a great value.

    • Perfect for factories in need of value and performance, the LS10-B SCARA Robot provides a low-cost solution packed full of features, including a large payload up to 10 kg. Intuitive Epson RC+® development software makes it easy to customize your automation needs, while a powerful arm design allows for reaches up to 600 mm. The LS10-B features high acceleration/deceleration rates and high-speed cycle times. It’s available in an ISO 4 Clean version for critical, dust-free applications. There are also integrated options available including vision, fieldbus interface solutions, RC+ 7.0 API software, teach pendants and customizable GUIs. The LS10-B offers the perfect combination of versatility, value and reliability.


  • Full-featured, ultra low cost — ideal for factories in need of maximum value and performance with high payload requirements
  • Easy to use — intuitive and feature-packed Epson RC+ development software makes it easy to create high-performance solutions
  • Powerful servo system design — proprietary Epson gyro sensors allow for low residual vibration
  • Outstanding acceleration/deceleration rates — smooth start/stop motion
  • High speed — delivers fast cycle times to maximize part throughput
  • ISO 4 Clean models available — for critical dust-free applications
  • Powerful arm design — up to 800 mm, up to 10 kg payload, and multi-tool capable. Also available in 700 mm and 800 mm reaches.
  • Integrated options — vision, designed specifically for robot guidance; plus, fieldbus interface solutions; RC+ 7.0 API software for open-platform functionality; teach pendants; and customizable GUIs
  • Easy setup — built-in camera cable for optional vision system; top-of-arm electrical and pneumatic layout with screw holes to mount additional equipment
  • No battery required for encoder — minimizes downtime and reduces overall cost of ownership

What's in the box:

  • LS10-B robot and RC90-B controller
  • Robot power and signal cables
  • Epson RC+ software
  • E-Stop unit with cable
  • LS10-B Robot System Safety & Installation Manual
  • Connector set (I/O, hand I/O and safety circuit connectors)


Payload: Rated: 5 Kg; Max: 10 KgArm Length: Length — Joint 1 plus Joint 2: 600 mmRepeatability: Joints 1-2: ± 0.025 mm
Joint 3: ± 0.01 mm
Joint 4: ± 0.01 degInstallation Environment: Standard or Cleanroom (ISO 4)Mounting Type: TabletopWeight: 23 kg, 50.7 lb (cables not included)Max. motion range: Joint 1: ± 132 deg
Joint 3 Standard: 200 mm/300 mm
Joint 3 Clean: 170 mm/270 mm
Joint 4: ± 360 degStandard cycle time*1: 0.44 secsAllowable moment of inertia*2: Rated: 0.02 kg·m2
Max: 0.3 kg·m2Motor power consumption: 1.8 kVa; Power: AC 200 - 240 V Single PhaseInstalled wire for customer use: Electric: 15-pin (D-sub), 8-pin (RJ45 Cat 5e)Installed pneumatic tube for customer use: Pneumatic: ø6 mm x2, ø4 mm x1Power / cable length: 3m/5m/10mApplicable controller: RC90-BSafety standard: CE Marking: EMC Directive, Machinery Directive, KC Mark, KCs mark, ANSI/RIA R15.06-2012, NFPA79 (2007 Edition)


1Cycle time based on round-trip arch motion (300mm horizontal, 25mm vertical) with 2 kg payload (path coordinates optimized for maximum speed).

2If the center of gravity is at the center of each arm. If the center of gravity is not at the center of each arm, set the eccentric quantity using INERTIA command.
