Epson Home Theatre TW7100 3LCD 4K PRO-UHD1 Projector

An affordable and easy-to-use projector for creating the big screen experience at home.

      • 4K PRO-UHD1 for crisp, clear images: Watch native 4K and upscale non-4K content
      • Easy to set up and access content: Stream content by plugging devices into either of the two HDMI ports
      • High-quality and affordable: Flexible features that deliver a 4K experience at an affordable price
      • Engaging big screen experience: Get the best out of movies, sports and gaming
      • Watch a movie a day for seven years2: 5,000 hours lamp life in Eco mode

Elevate your home entertainment
Get advanced, high-end features at an affordable price with this 4K PRO-UHD1 projector. With a display that reaches up to 1270cm(500"), you can enjoy the latest 4K content, with superior image quality and a high contrast ratio. Lining up the picture is effortless using lens shift, optical zoom and keystone correction. It's easy to set up, stream content and get sound with built-in speakers or Bluetooth.

The complete picture
Experience bright, vivid colours with this affordable 4K PRO-UHD1 projector. By delivering an equally high White and Colour Light Output of 3,000 lumens, it achieves both a high brightness and intense colours. The high contrast ratio of 100,000:1 delivers deep blacks and clearly defined shadows, and the frame interpolation gives sharper fast-moving images.

Big screen experience
Feel immersed in your home entertainment with an engaging big screen experience. This projector can create a display size of up to 1270(500"), can play 2D and 3D content, and boasts noise-cancelling technology. Lens shift, zoom and keystone correction ensure that your picture is exactly where you want it to be.

Stream content easily

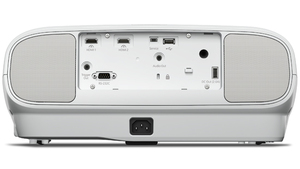

Plug and play 4K1 content simply by inserting a streaming device into the back of the projector so it's ready to go at a moment's notice. You can also display 4K1 content from a games console, set-top box, Blu-ray player, tablet or other device via the two HDMI ports. Connect sound bars wirelessly via Bluetooth.

Enjoy up to seven years2 of movies
Watch a movie every day on the big screen for the next seven years2 thanks to its incredibly long lamp life that minimises replacements. Epson projectors are known for their reliability, so you don’t have to worry about missing a minute of your favourite film, game or programme.

See beyond resolution
With Epson's 4K PRO-UHD1 projectors, you get a holistic approach to image performance over and above the ability to receive, process and project 4K1 content. Great images are the result of a combination of technologies coming together, including equal colour and white brightness, 3LCD technology, contrast control, HDR10 and colour processing.

Brighter, vivid projection
White brightness alone cannot bring the true colours you see everyday to life. The 3LCD technology found in Epson’s projectors delivers an equally high white and Colour Light Output (CLO), so that you can experience vivid and lifelike images.

Innovations that matter
Epson projectors have a significantly higher colour brightness than 1-chip DLP projectors thanks to 3LCD technology. As such, Epson’s projectors offer up to three times brighter colours3, resulting in more vivid and colourful images.

Flicker-free images
1-chip and LED projectors can be subject to the ‘rainbow effect’, which describes how some people can see a disruptive flicker in fast-moving images. Ensuring smooth images, Epson’s projectors use 3LCD technology, which means that the ‘rainbow effect’ can never occur.

What's in the box:

Main unit, Power cable, Remote control incl. batteries, User's Manual Set


Native Resolution: 4K PRO-UHD, 16:9


Type: UHE, 250 W, 3,500 h durability, 5,000 h durability (economy mode)

Projection Technology:

Projection Technology: 3LCD Technology, RGB liquid crystal shutter


White Light Output: 3,000 LumenColour Mode: 3,000 Lumen

Contrast Ratio:

Contrast Ratio: 100,000 : 1

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30° (Slide Bar)Auto Keystone: Yes (Vertical)Horizontal Slide Keystone Correction: YesQuick Corner: Yes


USB Interface: USB Type A: 2 (The one port is for Wireless LAN, Firmware update, Copy OSD Settings. The another port is only for Streaming Media Player with 2000 mA power supply).
USB Type B: 1 Network: Wireless LAN (Optional)Bluetooth: Version:Ver. 3.0; Output: Class 2; Communication distance: Approx. 10m; Supported Profiles: A2DP; Content protection: SCMS-T; Frequency used: 2.4 GHz; Supported codecs: SBC, Qualcomm® aptX™ audio

Operating Altitude:

Operating Altitude: 0 - 3,000 m <0 - 9,843 ft> (over 1,500m / 4,921ft: with high altitude mode)

Direct Power On/Off:

Direct Power On/Off: Yes / N/A

Projection Lens:

Focal Length: 18.2 mm - 29.2 mmF-number: 1.49 - 1.77Lens Shift: Manual - Vertical ± 60 %, horizontal ± 24 %Screen Size: 102cm (40") - 1270cm (500")Zoom: Manual, Factor: 1 - 1.62Throw Ratio Range: 1.32 - 2.15:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode: (Optional Wireless LAN Unit use
IEEE 802.11b: 11 Mbps*4
IEEE 802.11g: 54 Mbps*4
IEEE 802.11n: 130 Mbps*4

Image Enhancement:

Detail Enhancement: Yes

Internal Speaker(s):

Sound Output: 10 Watt, Stereo: Stereo

3D Features:

3D Display: Yes3D Format: Yes3D Depth: Yes2D - 3D Conversion: Yes

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H): 410‎ x 310 x 157 mm (Width x Depth x Height)


1. 4K Enhancement Technology shifts each pixel diagonally to double Full HD resolution. Resolution is Full HD in 3D mode.
2. Based on watching an average 1hr 45mins film every day and the lamp set in Eco mode.
3. Colour brightness(colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4.  Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.
4. Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors
